Professional | Double Arm Hinged Support Rail
Mild Steel, Stainless Steel
35mm

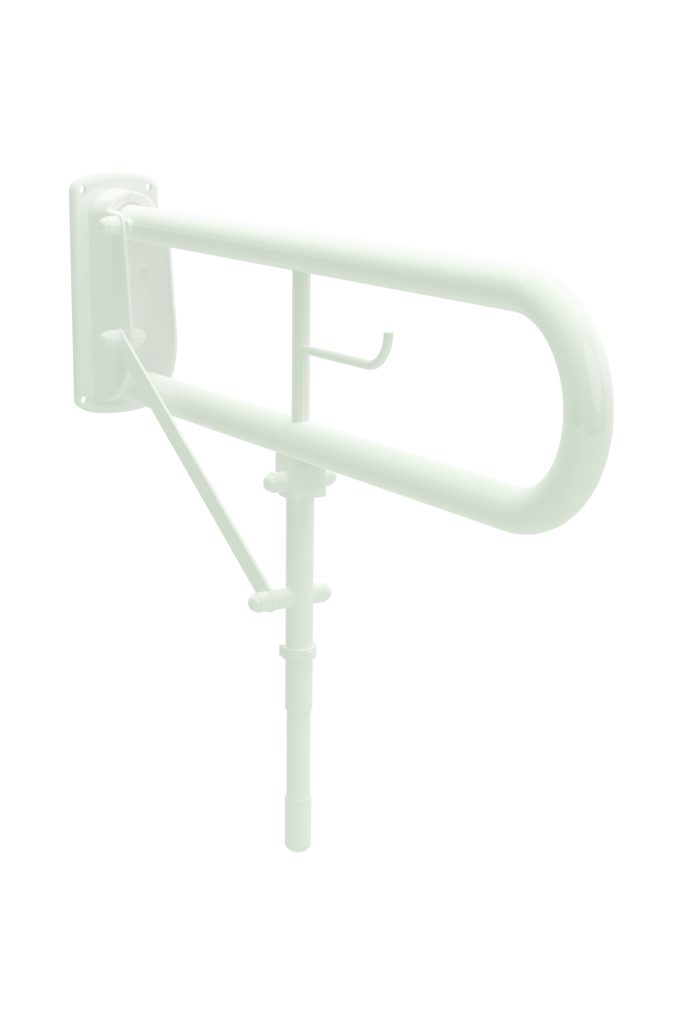

Double Arm Hinged Support Rail

  • Stainless Steel for use in wet or damp areas. Mild Steel for use in dry areas.
  • 35mm tubular construction for superior strength and confidence.
  • Hinged rails are tested to 170kg in vertical and 45 degree positions.
  • Drop Down Leg can be adjusted to 680, 700, and 750mm heights with further micro adjustment of 40mm.
  • Die-cast Aluminium Backplate for strength and rigidity.
  • Available in polyester coated finish. Please specify the RAL colour you require when ordering colours.
  • Bespoke sizes available on request
  • Backplate bolt holes are drilled for M8 Bolts. (Fixings not supplied)
  • Available with toilet roll holder.
RAL Colour RAL Colour
RAL5011
White
Product Data Sheet
Category: Hinge Rails

Ribbed Grip

Double Arm Hinged Support Rail can be manufactured with a ribbed grip for extra stability and confidence. Please add an ‘R’ to the end of the product code.

Our Warranty

  • Stainless Steel: 3 years
  • Mild Steel: 1 year
  • Plastic: 1 year
  • Accessories: 1 year

We try and keep things simple, so, within the warranty periods detailed here, if it is our responsibility that something has gone wrong with the design, materials or manufacture of one of our products then we will replace, repair or refund the product at our discretion. There are, however, a few things that we cannot include in this limited warranty offer.
